TC4810 Self Raising Fixed Tower Crane QTZ40 4T Building Topkit Towercrane

Product Categories
Jinan Avitt International Trade Co., Ltd-HYCM Tower Crane
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

TC4810 Self Raising Fixed Tower Crane QTZ40 4T Building Topkit Towercrane

  • 1
  • 2
  • 3

Brand Name : HYCM

Model Number : QTZ40(4810) Tower Crane

Certification : CE, ISO, GOST, CU-TR

Place of Origin : China

MOQ : 1

Price : $26800-28500 per set

Payment Terms : TT, LC

Supply Ability : 40 sets per month

Delivery Time : 10 days after receiving the deposit or origin LC

Packaging Details : Naked packing, 3*40’HQ containers.

Condition : 100% New

Application : Buildings and projects

Type : Fixed with tower head

Max. load : 4 t

Jib length : 48 m

Tip. load : 1.0 t

Power supply : 380V/50Hz or according to client's requirements

Mast section : 1.5*1.5*2.2 m

Color : Yello, red or others

Main chord : 160*12 mm

Contact Now

TC4810 Self Raising Fixed Tower Crane QTZ40 4T Building Topkit Towercrane


Shot introduction

  • QTZ4810 Hammerhead tower crane for sale
  • Fixed / stationary /anchored tower crane
  • Max. load: 4ton
  • Tip load: 1.0ton
  • Jib length: 48m
  • CE, ISO, GOST, CU-TR certificate


Specification

Rated Lifting Moment (KN.M) 400
Type Fixed with tower head
Rated Loading Capacity (t) 4
Max. Lifting Load (t) 4
Tip Load (t) 1.0
Max. Lifting Height (m) 120
Free standing height (m) 29
Rope length (m) 320
Span (m) 48
Working range (m) 3 to 48
Slewing speed (r/min) 0.7/0.35
Trolley peed (m/min) 38.6/25.2
Jacking-up speed (m/min) 0.4
Counter jib length (m) 12.89
Power supply 380V/50Hz or according to client's requirements
Power Capacity (kw) 24.9
Electric switch box Schneider
Hoisting speed (m/min) (a=2) 64.15/32.57/7.0; (a=4) 32.14/15.60/3.5

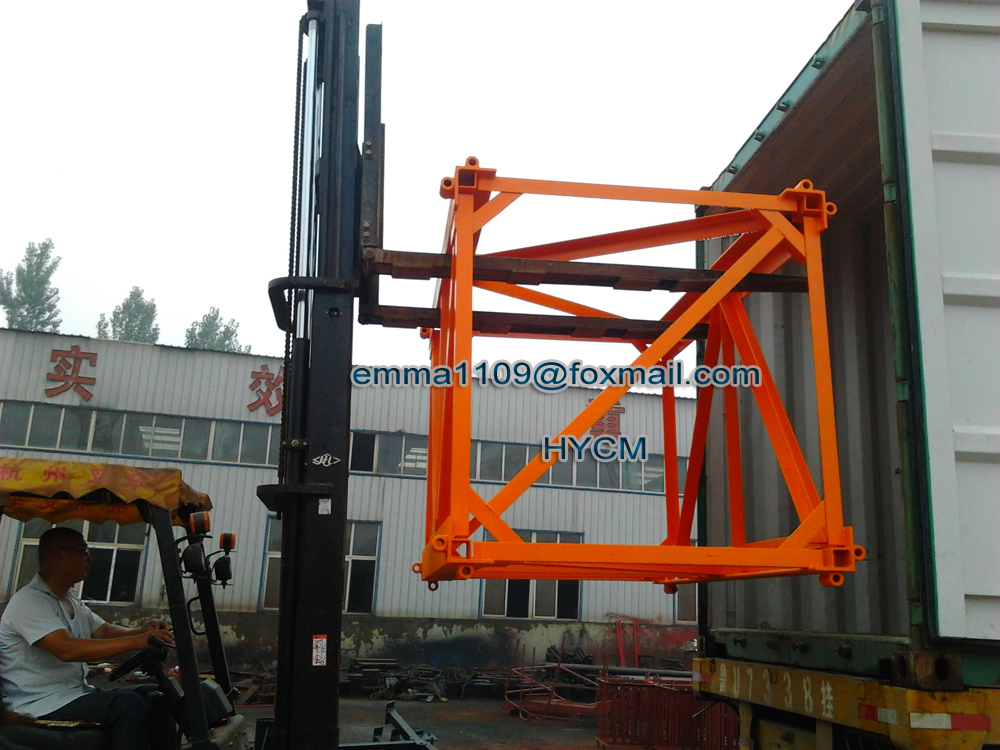

Mast section (m) 1.5*1.5*2.2m (140*12 /angle steel /Q235B)

Details:
1. Advanced technical parameters, max. Radius is 50m, the static height is 30m, it can reach up to max. height 120m by adding mast sections and anchorages.
2. Various tower crane types, such as stationary, external climbing and internal climbing types, is widely used in different construction sites.
3. Good speed adjusting performance, excellent stability.
4. Simple maintenance and reliable work.
5. Advanced electronic appliances, such as Schneider.
6. Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.
7. Anti-broken wire rope device and anti-broken shaft device

TC4810 Self Raising Fixed Tower Crane QTZ40 4T Building Topkit TowercraneTC4810 Self Raising Fixed Tower Crane QTZ40 4T Building Topkit Towercrane


Quality TC4810 Self Raising Fixed Tower Crane QTZ40 4T Building Topkit Towercrane wholesale

TC4810 Self Raising Fixed Tower Crane QTZ40 4T Building Topkit Towercrane Images
